Navigation

The dashboard provides a flexible navigation system that allows you to add custom navigation sections and menu items. Navigation items are organized into sections that can be placed in either the "Platform" (top) or "Administration" (bottom) areas of the sidebar.

Adding Navigation Items to Existing Sections

The simplest way to add navigation is to add menu items to existing sections. This is done automatically when you define routes with navMenuItem properties.

src/plugins/my-plugin/dashboard/index.tsx

import { defineDashboardExtension } from '@vendure/dashboard';

export default defineDashboardExtension({
    routes: [
        {
            path: '/my-custom-page',
            component: () => <div>My Custom Page</div>,
            navMenuItem: {
                // The section where this item should appear
                sectionId: 'catalog',
                // Unique identifier for this menu item
                id: 'my-custom-page',
                // Display text in the navigation
                title: 'My Custom Page',
                // Optional: URL if different from path
                url: '/my-custom-page',
            },
        },
    ],
});

Available Section IDs

The dashboard comes with several built-in sections:

• catalog - For product-related functionality
• orders - For order management
• customers - For customer management
• marketing - For promotions and marketing tools
• settings - For configuration and admin settings

Creating Custom Navigation Sections

You can create entirely new navigation sections with their own icons and ordering:

src/plugins/my-plugin/dashboard/index.tsx

import { defineDashboardExtension } from '@vendure/dashboard';
import { FileTextIcon, SettingsIcon } from 'lucide-react';

export default defineDashboardExtension({
    // Define custom navigation sections
    navSections: [
        {
            id: 'content-management',
            title: 'Content',
            icon: FileTextIcon,
            placement: 'top', // Platform area
            order: 350, // After Customers (400), before Marketing (500)
        },
        {
            id: 'integrations',
            title: 'Integrations',
            icon: SettingsIcon,
            placement: 'bottom', // Administration area
            order: 150, // Between System (100) and Settings (200)
        },
    ],
    routes: [
        {
            path: '/articles',
            component: () => <div>Articles</div>,
            navMenuItem: {
                sectionId: 'content-management', // Use our custom section
                id: 'articles',
                title: 'Articles',
            },
        },
        {
            path: '/pages',
            component: () => <div>Pages</div>,
            navMenuItem: {
                sectionId: 'content-management',
                id: 'pages',
                title: 'Pages',
            },
        },
    ],
});

Navigation Section Properties

Required Properties

• id: Unique identifier for the section
• title: Display name shown in the navigation

Optional Properties

• icon: Lucide React icon component to display next to the section title
• order: Number controlling the position of the section within its placement area (lower numbers appear first)
• placement: Either 'top' or 'bottom' - determines which area of the sidebar the section appears in

Navigation Item Properties

Required Properties

• sectionId: ID of the section where this item should appear
• id: Unique identifier for the menu item
• title: Display text for the menu item

Optional Properties

• url: Custom URL if different from the route path
• icon: Icon for the individual menu item (rarely used as sections typically have icons)

Section Placement and Ordering

The navigation sidebar is divided into two areas:

• Top Placement ('top'): The "Platform" area for core functionality (Dashboard, Catalog, Sales, etc.)
• Bottom Placement ('bottom'): The "Administration" area for system and configuration sections (System, Settings)

Placement Examples

export default defineDashboardExtension({
    navSections: [
        {
            id: 'reports',
            title: 'Reports',
            icon: BarChartIcon,
            placement: 'top', // Appears in Platform area
            order: 150, // Positioned within top sections
        },
        {
            id: 'integrations',
            title: 'Integrations',
            icon: PlugIcon,
            placement: 'bottom', // Appears in Administration area
            order: 150, // Positioned within bottom sections
        },
    ],
});

Order Scoping

Order Scoping

Order values are scoped within each placement area. This means:

• Top sections compete only with other top sections for positioning
• Bottom sections compete only with other bottom sections for positioning
• You can use the same order value in both top and bottom without conflict

Default Section Orders

Top Placement (Platform):

• Dashboard: 100
• Catalog: 200
• Sales: 300
• Customers: 400
• Marketing: 500

Bottom Placement (Administration):

• System: 100
• Settings: 200

This means if you want to add a section between Catalog and Sales in the top area, you might use order: 250. If you want to add a section before Settings in the bottom area, you could use order: 150.

Default Placement

If you don't specify a placement, sections default to 'top' placement.

Complete Example

Here's a comprehensive example showing how to create a complete navigation structure for a content management system:

src/plugins/cms/dashboard/index.tsx

import { defineDashboardExtension } from '@vendure/dashboard';
import { FileTextIcon, ImageIcon, TagIcon, FolderIcon, SettingsIcon } from 'lucide-react';

export default defineDashboardExtension({
    // Create custom navigation sections
    navSections: [
        {
            id: 'content',
            title: 'Content',
            icon: FileTextIcon,
            placement: 'top', // Platform area
            order: 250, // Between Catalog (200) and Sales (300)
        },
        {
            id: 'media',
            title: 'Media',
            icon: ImageIcon,
            placement: 'top', // Platform area
            order: 275, // After Content section
        },
    ],

    routes: [
        // Content section items
        {
            path: '/articles',
            component: () => <div>Articles List</div>,
            navMenuItem: {
                sectionId: 'content',
                id: 'articles',
                title: 'Articles',
            },
        },
        {
            path: '/pages',
            component: () => <div>Pages List</div>,
            navMenuItem: {
                sectionId: 'content',
                id: 'pages',
                title: 'Pages',
            },
        },
        {
            path: '/categories',
            component: () => <div>Categories List</div>,
            navMenuItem: {
                sectionId: 'content',
                id: 'categories',
                title: 'Categories',
            },
        },

        // Media section items
        {
            path: '/media-library',
            component: () => <div>Media Library</div>,
            navMenuItem: {
                sectionId: 'media',
                id: 'media-library',
                title: 'Library',
            },
        },
        {
            path: '/media-folders',
            component: () => <div>Media Folders</div>,
            navMenuItem: {
                sectionId: 'media',
                id: 'media-folders',
                title: 'Folders',
            },
        },

        // Add to existing settings section
        {
            path: '/cms-settings',
            component: () => <div>CMS Settings</div>,
            navMenuItem: {
                sectionId: 'settings',
                id: 'cms-settings',
                title: 'CMS Settings',
            },
        },
    ],
});

Icons

The dashboard uses Lucide React icons. You can import any icon from the library:

import {
    HomeIcon,
    ShoppingCartIcon,
    UsersIcon,
    SettingsIcon,
    FileTextIcon,
    ImageIcon,
    BarChartIcon,
    // ... any other Lucide icon
} from 'lucide-react';

Common icons for navigation sections:

• Content: FileTextIcon, EditIcon, BookOpenIcon
• Media: ImageIcon, FolderIcon, UploadIcon
• Analytics: BarChartIcon, TrendingUpIcon, PieChartIcon
• Tools: WrenchIcon, SettingsIcon, CogIcon
• Integrations: LinkIcon, ZapIcon, PlugIcon

Best Practices

Navigation Design Guidelines

1. Use descriptive section names: Choose clear, concise names that indicate the section's purpose
2. Group related functionality: Keep logically related menu items in the same section
3. Choose appropriate icons: Select icons that clearly represent the section's function
4. Consider ordering carefully: Place frequently used sections earlier in the navigation
5. Keep section counts reasonable: Avoid creating too many sections as it can clutter the navigation
6. Use consistent naming: Follow consistent patterns for menu item names within sections

Finding Existing Sections

Discovering Section IDs

To see what navigation sections are available, you can:

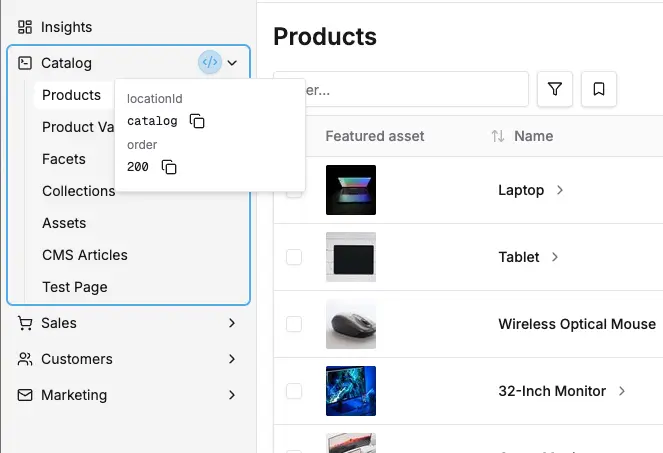

1. Enable Dev Mode in the dashboard
2. Examine the navigation sidebar to see section IDs
3. Look at other plugins' navigation configuration for examples

This gives you complete control over how your dashboard extensions integrate with the navigation system, allowing you to create a cohesive and well-organized user experience.
