Custom Fields

Custom fields allow you to add your own custom data properties to almost every Vendure entity. The entities which may have custom fields defined are listed in the CustomFields interface documentation.

Some use-cases for custom fields include:

Storing the weight, dimensions or other product-specific data on the ProductVariant entity.
Storing additional product codes on the ProductVariant entity such as ISBN or GTIN.
Adding a downloadable flag to the Product entity to indicate whether the product is a digital download.
Storing an external identifier (e.g. from a payment provider) on the Customer entity.
Adding a longitude and latitude to the StockLocation for use in selecting the closest location to a customer.

Note

Custom fields are not solely restricted to Vendure's native entities though, it's also possible to add support for custom fields to your own custom entities. See: Supporting custom fields

Defining custom fields

Custom fields are specified in the VendureConfig:

const config = {    // ...    customFields: {        Product: [            { name: 'infoUrl', type: 'string' },            { name: 'downloadable', type: 'boolean' },            { name: 'shortName', type: 'localeString' },        ],        User: [            { name: 'socialLoginToken', type: 'string', unique: true },        ],    },};

With the example config above, the following will occur:

The database schema will be altered, and a column will be added for each custom field. Note: changes to custom fields require a database migration. See the Migrations guide.
The GraphQL APIs will be modified to add the custom fields to the Product and User types respectively.

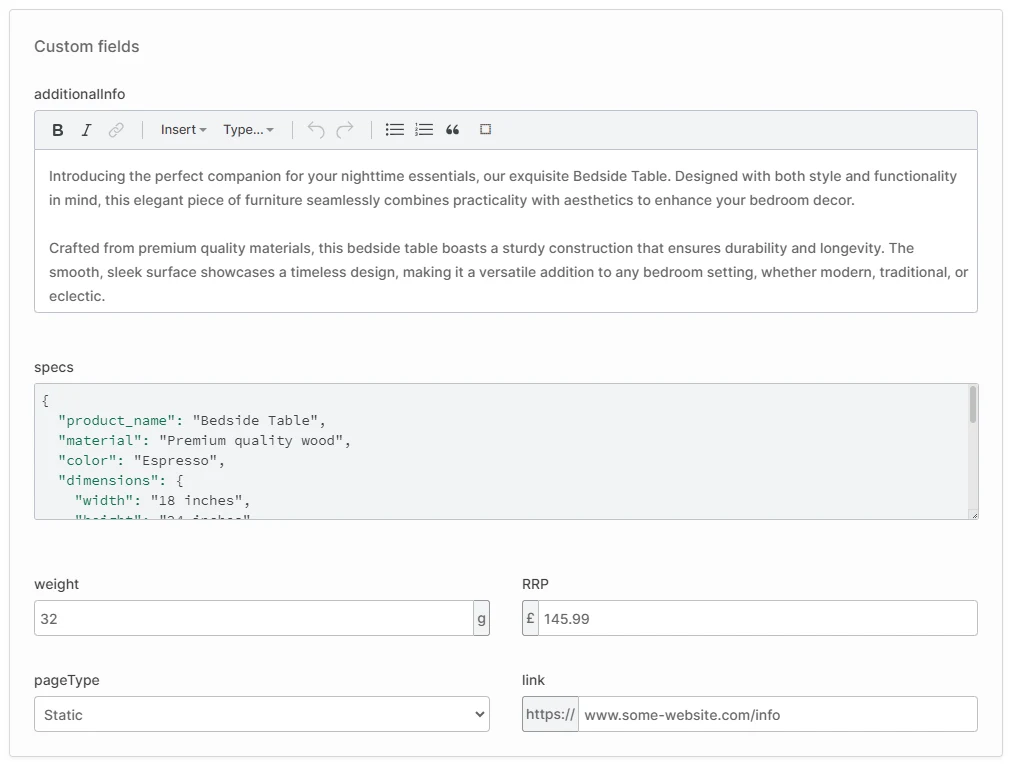

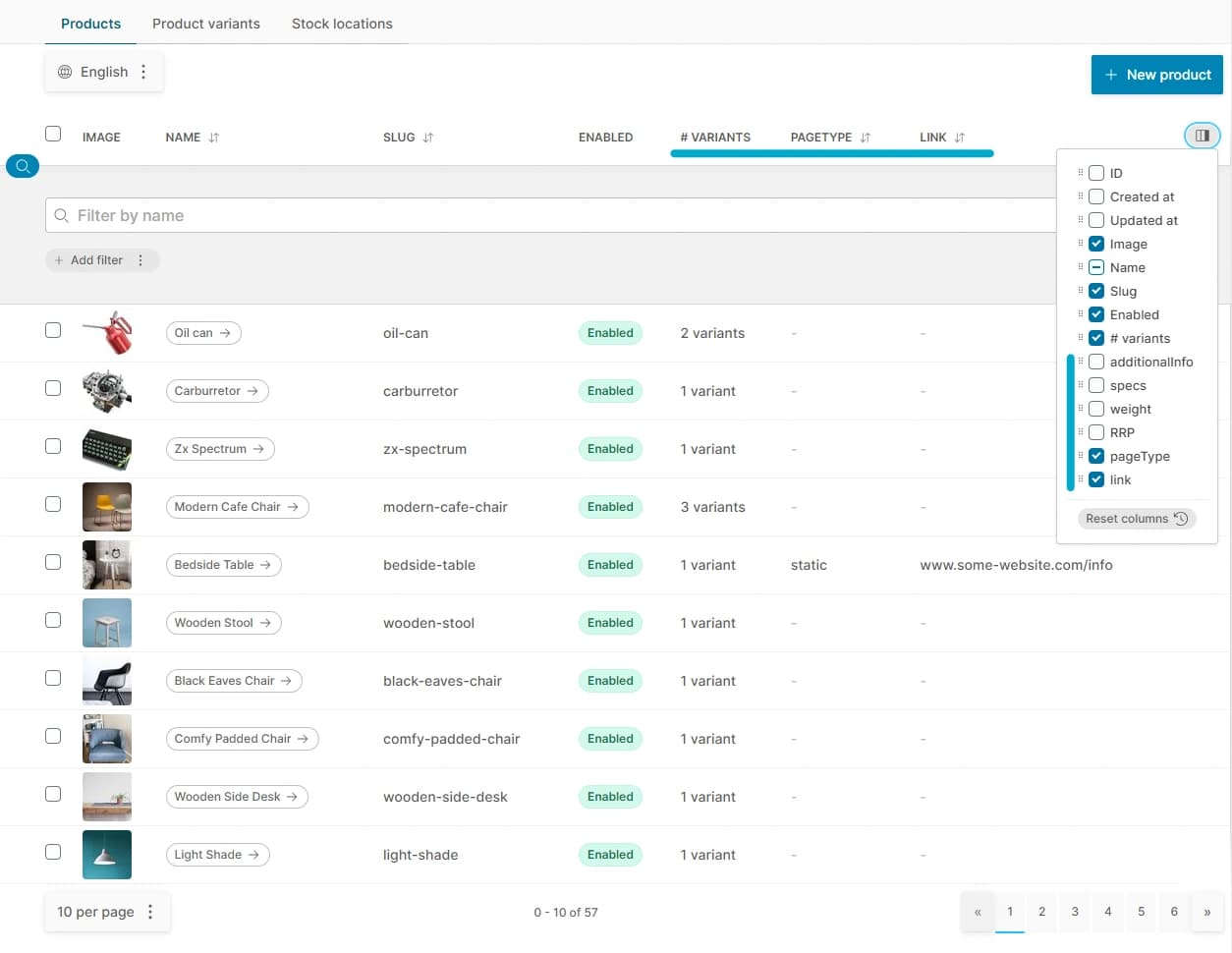

If you are using the AdminUiPlugin, the Admin UI detail pages will now contain form inputs to allow the custom field data to be added or edited, and the list view data tables will allow custom field columns to be added, sorted and filtered.

The values of the custom fields can then be set and queried via the GraphQL APIs:

Graphql

mutation {    updateProduct(input: {        id: 1        customFields: {        infoUrl: "https://some-url.com",        downloadable: true,        }        translations: [        { languageCode: en, customFields: { shortName: "foo" } }        ]        }) {        id        name        customFields {            infoUrl            downloadable            shortName        }    }}

The custom fields will also extend the filter and sort options available to the products list query:

Graphql

query {    products(options: {    filter: {        infoUrl: { contains: "new" },        downloadable: { eq: true }        },        sort: {            infoUrl: ASC        }        }) {        items {            id            name            customFields {                infoUrl                downloadable                shortName            }        }    }}

Available custom field types

The following types are available for custom fields:

Type	Description	Example
`string`	Short string data	url, label
`localeString`	Localized short strings	localized url
`text`	Long text data	extended product info, json config object
`localeText`	Localized long text	localized extended product info
`int`	Integer	product weight, customer loyalty points, monetary values
`float`	Floating point number	product review rating
`boolean`	Boolean	isDownloadable flag on product
`datetime`	A datetime	date that variant is back in stock
`struct`	Structured json-like data	Key-value attributes with additional data for products
`relation`	A relation to another entity	Asset used as a customer avatar, related Products

To see the underlying DB data type and GraphQL type used for each, see the CustomFieldType doc.

Relations

It is possible to set up custom fields that hold references to other entities using the 'relation' type:

const config = {    // ...    customFields: {        Customer: [            {                name: 'avatar',                type: 'relation', // [!code highlight]                entity: Asset, // [!code highlight]            },        ],    },};

In this example, we set up a many-to-one relationship from Customer to Asset, allowing us to specify an avatar image for each Customer. Relation custom fields are unique in that the input and output names are not the same - the input will expect an ID and will be named '<field name>Id' or '<field name>Ids' for list types.

Graphql

mutation {    updateCustomer(input: {        id: 1        customFields: {            avatarId: 42,        }    }) {        id        customFields {            avatar {                id                name                preview            }        }    }}

Accessing custom fields in TypeScript

As well as exposing custom fields via the GraphQL APIs, you can also access them directly in your TypeScript code. This is useful for plugins which need to access custom field data.

Given the following custom field configuration:

src/vendure-config.ts

import { VendureConfig } from '@vendure/core';const config: VendureConfig = {    // ...    customFields: {        Customer: [            { name: 'externalId', type: 'string' },            { name: 'avatar', type: 'relation', entity: Asset },        ],    },};

the externalId will be available whenever you access a Customer entity:

const customer = await this.connection.getRepository(ctx, Customer).findOne({    where: { id: 1 },});console.log(customer.externalId);

The avatar relation will require an explicit join to be performed in order to access the data, since it is not eagerly loaded by default:

const customer = await this.connection.getRepository(ctx, Customer).findOne({    where: { id: 1 },    relations: {        customFields: {            avatar: true,        }    }});console.log(customer.avatar);

or if using the QueryBuilder API:

const customer = await this.connection.getRepository(ctx, Customer).createQueryBuilder('customer')    .leftJoinAndSelect('customer.customFields.avatar', 'avatar')    .where('customer.id = :id', { id: 1 })    .getOne();console.log(customer.avatar);

or using the EntityHydrator:

const customer = await this.customerService.findOne(ctx, 1);await this.entityHydrator.hydrate(ctx, customer, { relations: ['customFields.avatar'] });console.log(customer.avatar);

Custom field config properties

Common properties

All custom fields share some common properties:

name
type
list
label
description
public
readonly
internal
defaultValue
nullable
unique
validate
requiresPermission
deprecated

name

RequiredType:string

The name of the field. This is used as the column name in the database, and as the GraphQL field name. The name should not contain spaces and by convention should be camelCased.

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'infoUrl', // [!code highlight]                type: 'string'            },        ]    }};

type

RequiredType:CustomFieldType

The type of data that will be stored in the field.

list

OptionalType:boolean

If set to true, then the field will be an array of the specified type. Defaults to false.

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'infoUrls',                type: 'string',                list: true, // [!code highlight]            },        ]    }};

Setting a custom field to be a list has the following effects:

The GraphQL type will be an array of the specified type.
The Dashboard will display a list of inputs for the field.
For lists of primitive types (anything except relation), the database type will be set to simple-json which serializes the data into a JSON string. For lists of relation types, a separate many-to-many table will be created.

label

OptionalType:LocalizedStringArray

An array of localized labels for the field. These are used in the Dashboard to label the field.

src/vendure-config.ts

import { LanguageCode } from '@vendure/core';const config = {    // ...    customFields: {        Product: [            {                name: 'infoUrl',                type: 'string',                label: [ // [!code highlight]                    { languageCode: LanguageCode.en, value: 'Info URL' }, // [!code highlight]                    { languageCode: LanguageCode.de, value: 'Info-URL' }, // [!code highlight]                    { languageCode: LanguageCode.es, value: 'URL de información' }, // [!code highlight]                ], // [!code highlight]            },        ]    }};

description

OptionalType:LocalizedStringArray

An array of localized descriptions for the field. These are used in the Dashboard to describe the field.

src/vendure-config.ts

import { LanguageCode } from '@vendure/core';const config = {    // ...    customFields: {        Product: [            {                name: 'infoUrl',                type: 'string',                description: [ // [!code highlight]                    { languageCode: LanguageCode.en, value: 'A URL to more information about the product' }, // [!code highlight]                    { languageCode: LanguageCode.de, value: 'Eine URL zu weiteren Informationen über das Produkt' }, // [!code highlight]                    { languageCode: LanguageCode.es, value: 'Una URL con más información sobre el producto' }, // [!code highlight]                ], // [!code highlight]            },        ]    }};

public

OptionalType:boolean

Whether the custom field is available via the Shop API. Defaults to true.

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'profitMargin',                type: 'int',                public: false, // [!code highlight]            },        ]    }};

readonly

OptionalType:boolean

Whether the custom field can be updated via the GraphQL APIs. Defaults to false. If set to true, then the field can only be updated via direct manipulation via TypeScript code in a plugin.

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'profitMargin',                type: 'int',                readonly: true, // [!code highlight]            },        ]    }};

internal

OptionalType:boolean

Whether the custom field is exposed at all via the GraphQL APIs. Defaults to false. If set to true, then the field will not be available via the GraphQL API, but can still be used in TypeScript code in a plugin. Internal fields are useful for storing data which is not intended to be exposed to the outside world, but which can be used in plugin logic.

src/vendure-config.ts

const config = {    // ...    customFields: {        OrderLine: [            {                name: 'referralId',                type: 'string',                internal: true, // [!code highlight]            },        ]    }};

defaultValue

OptionalType:any

The default value when an Entity is created with this field. If not provided, then the default value will be null. Note that if you set nullable: false, then you should also provide a defaultValue to avoid database errors when creating new entities.

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'reviewRating',                type: 'float',                defaultValue: 0, // [!code highlight]            },        ]    }};

nullable

OptionalType:boolean

Whether the field is nullable in the database. If set to false, then a defaultValue should be provided.

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'reviewRating',                type: 'float',                nullable: false, // [!code highlight]                defaultValue: 0, // [!code highlight]            },        ]    }};

unique

OptionalType:boolean

Whether the value of the field should be unique. When set to true, a UNIQUE constraint is added to the column. Defaults to false.

src/vendure-config.ts

const config = {    // ...    customFields: {        Customer: [            {                name: 'externalId',                type: 'string',                unique: true, // [!code highlight]            },        ]    }};

validate

OptionalType:(value: any, injector: Injector, ctx: RequestContext) => string | LocalizedString[] | void

A custom validation function. If the value is valid, then the function should not return a value. If a string or LocalizedString array is returned, this is interpreted as an error message.

Note that string, number and date fields also have some built-in validation options such as min, max, pattern which you can read about in the following sections.

src/vendure-config.ts

import { LanguageCode } from '@vendure/core';const config = {    // ...    customFields: {        Product: [            {                name: 'infoUrl',                type: 'string',                validate: (value: any) => { // [!code highlight]                    if (!value.startsWith('http')) { // [!code highlight]                        // If a localized error message is not required, a simple string can be returned. // [!code highlight]                        // return 'The URL must start with "http"'; // [!code highlight] // [!code highlight]                        // If a localized error message is required, return an array of LocalizedString objects. // [!code highlight]                        return [ // [!code highlight]                            { languageCode: LanguageCode.en, value: 'The URL must start with "http"' }, // [!code highlight]                            { languageCode: LanguageCode.de, value: 'Die URL muss mit "http" beginnen' }, // [!code highlight]                            { languageCode: LanguageCode.es, value: 'La URL debe comenzar con "http"' }, // [!code highlight]                        ]; // [!code highlight]                    } // [!code highlight]                }, // [!code highlight]            },        ]    }};

This function can even be asynchronous and may use the Injector to access providers.

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'partCode',                type: 'string',                validate: async (value, injector, ctx) => { // [!code highlight]                    const partCodeService = injector.get(PartCodeService); // [!code highlight]                    const isValid = await partCodeService.validateCode(value); // [!code highlight]                    if (!isValid) { // [!code highlight]                        return `Part code ${value} is not valid`; // [!code highlight]                    } // [!code highlight]                }, // [!code highlight]            },        ]    }};

requiresPermission

OptionalType:Permission | Permission[] | string | string[]

Since v2.2.0, you can restrict access to custom field data by specifying a permission or permissions which are required to read and update the field. For instance, you might want to add a particular custom field to the Product entity, but you do not want all administrators to be able to view or update the field.

In the Dashboard, the custom field will not be displayed if the current administrator lacks the required permission.

In the GraphQL API, if the current user does not have the required permission, then the field will always return null. Attempting to set the value of a field for which the user does not have the required permission will cause the mutation to fail with an error.

src/vendure-config.ts

import { Permission } from '@vendure/core';const config = {    // ...    customFields: {        Product: [            {                name: 'internalNotes',                type: 'text',                requiresPermission: Permission.SuperAdmin, // [!code highlight]            },            {                name: 'shippingType',                type: 'string',                // You can also use an array of permissions,  // [!code highlight]                // and the user must have at least one of the permissions // [!code highlight]                // to access the field. // [!code highlight]                requiresPermission: [ // [!code highlight]                    Permission.SuperAdmin, // [!code highlight]                    Permission.ReadShippingMethod, // [!code highlight]                ], // [!code highlight]            },        ]    }};

Note

The requiresPermission property only affects the Admin API. Access to a custom field via the Shop API is controlled by the public property.

If you need special logic to control access to a custom field in the Shop API, you can set public: false and then implement a custom field resolver which contains the necessary logic, and returns the entity's custom field value if the current customer meets the requirements.

deprecated

OptionalType:boolean | string

Marks the custom field as deprecated in the GraphQL schema. When set to true, the field will be marked with the @deprecated directive. When set to a string, that string will be used as the deprecation reason.

This is useful for API evolution - you can mark fields as deprecated to signal to API consumers that they should migrate to newer alternatives, while still maintaining backward compatibility.

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'oldField',                type: 'string',                deprecated: true, // [!code highlight]            },            {                name: 'legacyUrl',                type: 'string',                deprecated: 'Use the new infoUrl field instead', // [!code highlight]            },        ]    }};

When querying the GraphQL schema, deprecated fields will be marked accordingly:

Graphql

type ProductCustomFields {    oldField: String @deprecated    legacyUrl: String @deprecated(reason: "Use the new infoUrl field instead")    infoUrl: String}

Properties for `string` fields

In addition to the common properties, the string custom fields have some type-specific properties:

pattern
options
length

pattern

OptionalType:string

A regex pattern which the field value must match. If the value does not match the pattern, then the validation will fail.

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'gtin',                type: 'string',                pattern: '^\d{8}(?:\d{4,6})?$', // [!code highlight]            },        ]    }};

options

OptionalType:{ value: string; label?: LocalizedString[]; }[]

An array of pre-defined options for the field. This is useful for fields which should only have a limited set of values. The value property is the value which will be stored in the database, and the label property is an optional array of localized strings which will be displayed in the Dashboard.

src/vendure-config.ts

import { LanguageCode } from '@vendure/core';const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'condition',                type: 'string',                options: [ // [!code highlight]                    { value: 'new', label: [{ languageCode: LanguageCode.en, value: 'New' }] }, // [!code highlight]                    { value: 'used', label: [{ languageCode: LanguageCode.en, value: 'Used' }] }, // [!code highlight]                ], // [!code highlight]            },        ]    }};

Attempting to set the value of the field to a value which is not in the options array will cause the validation to fail.

length

OptionalType:number

The max length of the varchar created in the database. Defaults to 255. Maximum is 65,535.

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'partCode',                type: 'string',                length: 20, // [!code highlight]            },        ]    }};

Properties for `localeString` fields

In addition to the common properties, the localeString custom fields have some type-specific properties:

pattern
length

pattern

OptionalType:string

Same as the pattern property for string fields.

length

OptionalType:number

Same as the length property for string fields.

Properties for `int` & `float` fields

In addition to the common properties, the int & float custom fields have some type-specific properties:

min
max
step

min

OptionalType:number

The minimum permitted value. If the value is less than this, then the validation will fail.

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'reviewRating',                type: 'int',                min: 0, // [!code highlight]            },        ]    }};

max

OptionalType:number

The maximum permitted value. If the value is greater than this, then the validation will fail.

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'reviewRating',                type: 'int',                max: 5, // [!code highlight]            },        ]    }};

step

OptionalType:number

The step value. This is used in the Dashboard to determine the increment/decrement value of the input field.

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'reviewRating',                type: 'int',                step: 0.5, // [!code highlight]            },        ]    }};

Properties for `datetime` fields

In addition to the common properties, the datetime custom fields have some type-specific properties. The min, max & step properties for datetime fields are intended to be used as described in the MDN datetime-local docs

min
max
step

min

OptionalType:string

The earliest permitted date. If the value is earlier than this, then the validation will fail.

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'releaseDate',                type: 'datetime',                min: '2019-01-01T00:00:00.000Z', // [!code highlight]            },        ]    }};

max

OptionalType:string

The latest permitted date. If the value is later than this, then the validation will fail.

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'releaseDate',                type: 'datetime',                max: '2019-12-31T23:59:59.999Z', // [!code highlight]            },        ]    }};

step

OptionalType:string

The step value. See the MDN datetime-local docs to understand how this is used.

Properties for `struct` fields

Info

The struct custom field type is available from Vendure v3.1.0.

In addition to the common properties, the struct custom fields have some type-specific properties:

fields

fields

RequiredType:StructFieldConfig[]

A struct is a data structure comprising a set of named fields, each with its own type. The fields property is an array of StructFieldConfig objects, each of which defines a field within the struct.

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'dimensions',                type: 'struct',                fields: [ // [!code highlight]                    { name: 'length', type: 'int' }, // [!code highlight]                    { name: 'width', type: 'int' }, // [!code highlight]                    { name: 'height', type: 'int' }, // [!code highlight]                ], // [!code highlight]            },        ]    }};

When querying the Product entity, the dimensions field will be an object with the fields length, width and height:

Graphql

query {    product(id: 1) {        customFields {            dimensions {                length                width                height            }        }    }}

Struct fields support many of the same properties as other custom fields, such as list, label, description, validate, ui and type-specific properties such as options and pattern for string types.

Note

The following properties are not supported for struct fields: public, readonly, internal, defaultValue, nullable, unique, requiresPermission.

src/vendure-config.ts

import { LanguageCode } from '@vendure/core';const config = {    // ...    customFields: {        OrderLine: [            {                name: 'customizationOptions',                type: 'struct',                fields: [                    {                        name: 'color',                        type: 'string',                        options: [ // [!code highlight]                            { value: 'red', label: [{ languageCode: LanguageCode.en, value: 'Red' }] }, // [!code highlight]                            { value: 'blue', label: [{ languageCode: LanguageCode.en, value: 'Blue' }] }, // [!code highlight]                        ], // [!code highlight]                    },                    {                        name: 'engraving',                        type: 'string',                        validate: (value: any) => { // [!code highlight]                            if (value.length > 20) { // [!code highlight]                                return 'Engraving text must be 20 characters or fewer'; // [!code highlight]                            } // [!code highlight]                        }, // [!code highlight]                    },                    {                        name: 'notifyEmailAddresses',                        type: 'string',                        list: true, // [!code highlight]                    }                ],            },        ]    }};

Properties for `relation` fields

In addition to the common properties, the relation custom fields have some type-specific properties:

entity
eager
graphQLType
inverseSide

entity

RequiredType:VendureEntity

The entity which this custom field is referencing. This can be one of the built-in entities, or a custom entity. If the entity is a custom entity, it must extend the VendureEntity class.

src/vendure-config.ts

import { Product } from '\@vendure/core';const config = {    // ...    customFields: {        Product: [            {                name: 'relatedProducts',                list: true,                type: 'relation', // [!code highlight]                entity: Product, // [!code highlight]            },        ]    }};

eager

OptionalType:boolean

Whether to eagerly load the relation. Defaults to false. Note that eager loading has performance implications, so should only be used when necessary.

src/vendure-config.ts

import { Product } from '\@vendure/core';const config = {    // ...    customFields: {        Product: [            {                name: 'relatedProducts',                list: true,                type: 'relation',                entity: Product,                eager: true, // [!code highlight]            },        ]    }};

graphQLType

OptionalType:string

The name of the GraphQL type that corresponds to the entity. Can be omitted if the GraphQL type name is the same as the entity name, which is the case for all of the built-in entities.

src/vendure-config.ts

import { CmsArticle } from './entities/cms-article.entity';const config = {    // ...    customFields: {        Product: [            {                name: 'blogPosts',                list: true,                type: 'relation',                entity: CmsArticle,                graphQLType: 'BlogPost', // [!code highlight]            },        ]    }};

In the above example, the CmsArticle entity is being used as a related entity. However, the GraphQL type name is BlogPost, so we must specify this in the graphQLType property, otherwise Vendure will try to extend the GraphQL schema with reference to a non-existent "CmsArticle" type.

inverseSide

OptionalType:string | ((object: VendureEntity) => any)

Allows you to specify the inverse side of the relation. Let's say you are adding a relation from Product to a custom entity which refers back to the product. You can specify this inverse relation like so:

src/vendure-config.ts

import { Product } from '\@vendure/core';import { ProductReview } from './entities/product-review.entity';const config = {    // ...    customFields: {        Product: [            {                name: 'reviews',                list: true,                type: 'relation',                entity: ProductReview,                inverseSide: (review: ProductReview) => review.product, // [!code highlight]            },        ]    }};

This then allows you to query the ProductReview entity and include the product relation:

const { productReviews } = await this.connection.getRepository(ProductReview).findOne({    where: { id: 1 },    relations: ['product'],});

Custom Field UI

In the Dashboard, an appropriate default form input component is used for each custom field type. The Dashboard comes with a set of ready-made form input components, but it is also possible to create custom form input components. The ready-made components are:

text-form-input: A single-line text input
password-form-input: A single-line password input
select-form-input: A select input
textarea-form-input: A multi-line textarea input
rich-text-form-input: A rich text editor input that saves the content as HTML
json-editor-form-input: A simple JSON editor input
html-editor-form-input: A simple HTML text editor input
number-form-input: A number input
currency-form-input: A number input with currency formatting
boolean-form-input: A checkbox input
date-form-input: A date input
relation-form-input: A generic entity relation input which allows an ID to be manually specified
customer-group-form-input: A select input for selecting a CustomerGroup
facet-value-form-input: A select input for selecting a FacetValue
product-selector-form-input: A select input for selecting a Product from an autocomplete list
product-multi-form-input: A modal dialog for selecting multiple Products or ProductVariants

Default form inputs

This table shows the default form input component used for each custom field type:

Type	Form input component
`string`, `localeString`	`text-form-input` or, if options are defined, `select-form-input`
`text`, `localeText`	`textarea-form-input`
`int`, `float`	`number-form-input`
`boolean`	`boolean-form-input`
`datetime`	`date-form-input`
`relation`	Depends on related entity, defaults to `relation-form-input` if no specific component exists

Info

UI for relation type

The Dashboard app has built-in selection components for "relation" custom fields that reference certain common entity types, such as Asset, Product, ProductVariant and Customer. If you are relating to an entity not covered by the built-in selection components, you will see a generic relation component which allows you to manually enter the ID of the entity you wish to select.

If the generic selector is not suitable, or is you wish to replace one of the built-in selector components, you can create a UI extension that defines a custom field control for that custom field. You can read more about this in the custom form input guide

Specifying the input component

The defaults listed above can be overridden by using the ui property of the custom field config object. For example, if we want a number to be displayed as a currency input:

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'rrp',                type: 'int',                ui: { component: 'currency-form-input' }, // [!code highlight]            },        ]    }}

Here's an example config demonstrating several ways to customize the UI controls for custom fields:

import { LanguageCode, VendureConfig } from '@vendure/core';const config: VendureConfig = {    // ...    customFields: {        Product: [            // Rich text editor            { name: 'additionalInfo', type: 'text', ui: { component: 'rich-text-form-input' } },            // JSON editor            { name: 'specs', type: 'text', ui: { component: 'json-editor-form-input' } },            // Numeric with suffix            {                name: 'weight',                type: 'int',                ui: { component: 'number-form-input', suffix: 'g' },            },            // Currency input            {                name: 'RRP',                type: 'int',                ui: { component: 'currency-form-input' },            },            // Select with options            {                name: 'pageType',                type: 'string',                ui: {                    component: 'select-form-input',                    options: [                        { value: 'static', label: [{ languageCode: LanguageCode.en, value: 'Static' }] },                        { value: 'dynamic', label: [{ languageCode: LanguageCode.en, value: 'Dynamic' }] },                    ],                },            },            // Text with prefix            {                name: 'link',                type: 'string',                ui: {                    component: 'text-form-input',                    prefix: 'https://',                },            },        ],    },};

and the resulting UI:

Info

The various configuration options for each of the built-in form input (e.g. suffix) is documented in the DefaultFormConfigHash object.

Custom form input components

If none of the built-in form input components are suitable, you can create your own. This is a more advanced topic which is covered in detail in the Custom Form Input Components guide.

Tabbed custom fields

With a large, complex project, it's common for lots of custom fields to be required. This can get visually noisy in the UI, so Vendure supports tabbed custom fields. Just specify the tab name in the ui object, and those fields with the same tab name will be grouped in the UI! The tab name can also be a translation token if you need to support multiple languages.

Note

Tabs will only be displayed if there is more than one tab name used in the custom fields. A lack of a tab property is counted as a tab (the "general" tab).

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            { name: 'additionalInfo', type: 'text', ui: { component: 'rich-text-form-input' } },            { name: 'specs', type: 'text', ui: { component: 'json-editor-form-input' } },            { name: 'width', type: 'int', ui: { tab: 'Shipping' } },            { name: 'height', type: 'int', ui: { tab: 'Shipping' } },            { name: 'depth', type: 'int', ui: { tab: 'Shipping' } },            { name: 'weight', type: 'int', ui: { tab: 'Shipping' } },        ],    },}

TypeScript Typings

Because custom fields are generated at run-time, TypeScript has no way of knowing about them based on your VendureConfig. Consider the example above - let's say we have a plugin which needs to access the custom field values on a Product entity.

Attempting to access the custom field will result in a TS compiler error:

import { RequestContext, TransactionalConnection, ID, Product } from '@vendure/core';export class MyService {    constructor(private connection: TransactionalConnection) {    }    async getInfoUrl(ctx: RequestContext, productId: ID) {        const product = await this.connection            .getRepository(ctx, Product)            .findOne(productId);        return product.customFields.infoUrl;    }                           // ^ TS2339: Property 'infoUrl'}                             // does not exist on type 'CustomProductFields'.

The "easy" way to solve this is to assert the customFields object as any:

return (product.customFields as any).infoUrl;

However, this sacrifices type safety. To make our custom fields type-safe we can take advantage of a couple of more advanced TypeScript features - declaration merging and ambient modules. This allows us to extend the built-in CustomProductFields interface to add our custom fields to it:

// types.ts// Note: we are using a deep import here, rather than importing from `@vendure/core` due to// a possible bug in TypeScript (https://github.com/microsoft/TypeScript/issues/46617) which// causes issues when multiple plugins extend the same custom fields interface.import { CustomProductFields } from '@vendure/core/dist/entity/custom-entity-fields';declare module '@vendure/core/dist/entity/custom-entity-fields' {    interface CustomProductFields {        infoUrl: string;        downloadable: boolean;        shortName: string;    }}

When this file is then imported into our service file (either directly or indirectly), TypeScript will know about our custom fields, and we do not need to do any type assertions.

return product.customFields.infoUrl;// no error, plus TS autocomplete works.

Caution

Note that for the typings to work correctly, order of imports matters.

One way to ensure that your custom field typings always get imported first is to include them as the first item in the tsconfig "include" array.

Tip

For a working example of this setup, see the real-world-vendure repo

Special cases

Beyond adding custom fields to the corresponding GraphQL types, and updating paginated list sort & filter options, there are a few special cases where adding custom fields to certain entities will result in further API changes.

OrderLine custom fields

When you define custom fields on the OrderLine entity, the following API changes are also automatically provided by Vendure:

Shop API: addItemToOrder will have a 3rd input argument, customFields, which allows custom field values to be set when adding an item to the order.
Shop API: adjustOrderLine will have a 3rd input argument, customFields, which allows custom field values to be updated.
Admin API: the equivalent mutations for manipulating draft orders and for modifying and order will also have inputs to allow custom field values to be set.

Info

To see an example of this in practice, see the Configurable Product guide

Order custom fields

When you define custom fields on the Order entity, the following API changes are also automatically provided by Vendure:

Admin API: modifyOrder will have a customFields field on the input object.

ShippingMethod custom fields

When you define custom fields on the ShippingMethod entity, the following API changes are also automatically provided by Vendure:

Shop API: eligibleShippingMethods will have public custom fields available on the result.

PaymentMethod custom fields

When you define custom fields on the PaymentMethod entity, the following API changes are also automatically provided by Vendure:

Shop API: eligiblePaymentMethods will have public custom fields available on the result.

Customer custom fields

When you define custom fields on the Customer entity, the following API changes are also automatically provided by Vendure:

Shop API: registerCustomerAccount will have have a customFields field on the input object.

Custom Fields

Defining custom fields

Available custom field types

Relations

Accessing custom fields in TypeScript

Custom field config properties

Common properties

name

type

list

label

description

public

readonly

internal

defaultValue

nullable

unique

validate

requiresPermission

deprecated

Properties for string fields

pattern

options

length

Properties for localeString fields

pattern

length

Properties for int & float fields

min

max

step

Properties for datetime fields

min

max

step

Properties for struct fields

fields

Properties for relation fields

entity

eager

graphQLType

inverseSide

Custom Field UI

Default form inputs

Specifying the input component

Custom form input components

Tabbed custom fields

TypeScript Typings

Special cases

OrderLine custom fields

Order custom fields

ShippingMethod custom fields

PaymentMethod custom fields

Customer custom fields

Properties for `string` fields

Properties for `localeString` fields

Properties for `int` & `float` fields

Properties for `datetime` fields

Properties for `struct` fields

Properties for `relation` fields
