Extending the Dashboard

The custom functionality you create in your Vendure plugins often needs to be exposed via the Dashboard so that administrators can interact with it.

This guide covers how you can set up your plugins with extensions to the Dashboard.

Plugin Setup

For the purposes of the guides in this section of the docs, we will work with a simple Content Management System (CMS) plugin that allows us to create and manage content articles.

Let's create the plugin:

npx vendure add --plugin cms

Now let's add an entity to the plugin:

npx vendure add --entity Article --selected-plugin CmsPlugin --custom-fields

You now have your CmsPlugin created with a new Article entity. You can find the plugin in the ./src/plugins/cms directory.

Let's edit the entity to add the appropriate fields:

src/plugins/cms/entities/article.entity.ts

import { DeepPartial, HasCustomFields, VendureEntity } from '@vendure/core';import { Column, Entity } from 'typeorm';export class ArticleCustomFields {}@Entity()export class Article extends VendureEntity implements HasCustomFields {    constructor(input?: DeepPartial<Article>) {        super(input);    }    @Column()    slug: string;    @Column()    title: string;    @Column('text')    body: string;    @Column()    isPublished: boolean;    @Column(type => ArticleCustomFields)    customFields: ArticleCustomFields;}

Now let's create a new ArticleService to handle the business logic of our new entity:

npx vendure add --service ArticleService --selected-plugin CmsPlugin --selected-entity Article

The service will be created in the ./src/plugins/cms/services directory.

Finally, we'll extend the GraphQL API to expose those CRUD operations:

npx vendure add --api-extension CmsPlugin --selected-service ArticleService --query-name ArticleQuery

Now the api extensions and resolver has been created in the ./src/plugins/cms/api-extensions directory.

The last step is to create a migration for our newly-created entity:

npx vendure migrate --generate article

Your project should now have the following structure:

src
└── plugins/
    └── cms/
        ├── api/
        │   ├── api-extensions.ts
        │   └── article-admin.resolver.ts
        ├── entities/
        │   └── article.entity.ts
        ├── services/
        │   └── article.service.ts
        ├── cms.plugin.ts
        ├── constants.ts
        └── types.ts

Add Dashboard to Plugin

Dashboard extensions are declared directly on the plugin metadata. Unlike the old AdminUiPlugin, you do not need to separately declare ui extensions anywhere except on the plugin itself.

src/plugins/cms/cms.plugin.ts

@VendurePlugin({    // ...    entities: [Article],    adminApiExtensions: {        schema: adminApiExtensions,        resolvers: [ArticleAdminResolver],    },    dashboard: './dashboard/index.tsx', // [!code highlight]})export class CmsPlugin {    // ...}

You can do this automatically with the CLI command:

npx vendure add --dashboard CmsPlugin

This will add the dashboard property to your plugin as above, and will also create the /dashboard/index.tsx file which looks like this:

src/plugins/cms/dashboard/index.tsx

import { Button, defineDashboardExtension, Page, PageBlock, PageLayout, PageTitle } from '@vendure/dashboard';import { useState } from 'react';defineDashboardExtension({    routes: [        // Here's a custom page so you can test that your Dashboard extensions are working.        // You should be able to access this page via the "Catalog > Test Page" nav menu item.        {            path: '/test',            loader: () => ({ breadcrumb: 'Test Page' }),            navMenuItem: {                id: 'test',                title: 'Test Page',                sectionId: 'catalog',            },            component: () => {                const [count, setCount] = useState(0);                return (                    <Page pageId="test-page">                        <PageTitle>Test Page</PageTitle>                        <PageLayout>                            <PageBlock column="main" blockId="counter">                                <p>Congratulations, your Dashboard extension is working!</p>                                <p className="text-muted-foreground mb-4">                                    As is traditional, let's include a counter:                                </p>                                <Button variant="secondary" onClick={() => setCount(c => c + 1)}>                                    Clicked {count} times                                </Button>                            </PageBlock>                        </PageLayout>                    </Page>                );            },        },    ],    // The following extension points are only listed here    // to give you an idea of all the ways that the Dashboard    // can be extended. Feel free to delete any that you don't need.    pageBlocks: [],    navSections: [],    actionBarItems: [],    alerts: [],    widgets: [],    customFormComponents: {},    dataTables: [],    detailForms: [],    login: {},    historyEntries: [],});

IDE GraphQL Integration

When extending the dashboard, you'll very often need to work with GraphQL documents for fetching data and executing mutations.

Plugins are available for most popular IDEs & editors which provide auto-complete and type-checking for GraphQL operations as you write them. This is a huge productivity boost, and is highly recommended.

GraphQL extension for VS Code
GraphQL plugin for IntelliJ (including WebStorm)

Run the npx vendure schema to generate a GraphQL schema file that your IDE plugin can use to provide autocomplete.

Install the GraphQL plugin for your IDE
Run npx vendure schema --api admin to generate a schema.graphql file in your root directory
Create a graphql.config.yml file in your root directory with the following content:
graphql.config.yml
schema: 'schema.graphql'

Dev Mode

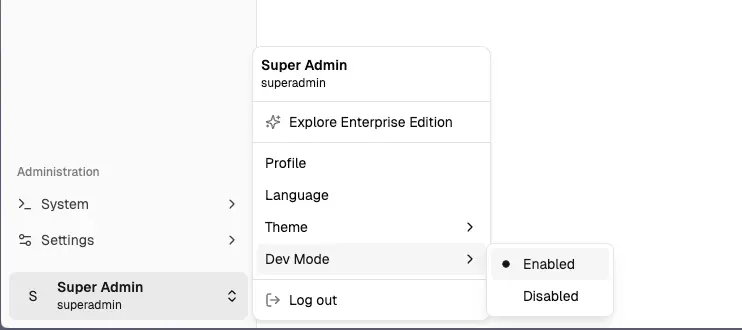

Once you have logged in to the dashboard, you can toggle on "Dev Mode" using the user menu in the bottom left:

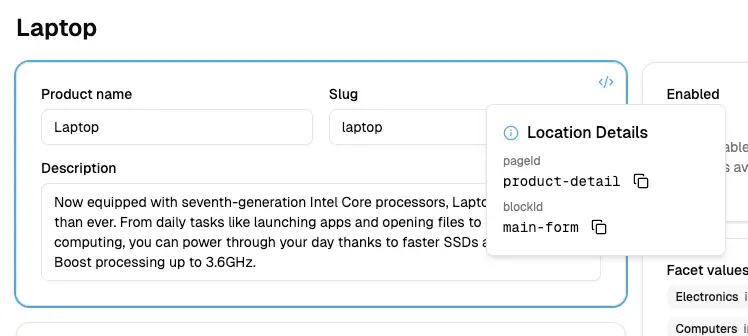

In Dev Mode, hovering any block in the dashboard will allow you to find the corresponding pageId and blockId values, which you can later use when customizing the dashboard. This is essential for:

Identifying where to place custom page blocks
Finding action bar locations
Understanding the page structure

What's Next?

Now that you understand the fundamentals of extending the dashboard, explore these specific guides:
