Adding Custom Fields to Vendure Entities

Adding Custom Fields to Vendure Entities | Vendure Docs

Graphql

mutation {    updateProduct(input: {        id: 1        customFields: {        infoUrl: "https://some-url.com",        downloadable: true,        }        translations: [        { languageCode: en, customFields: { shortName: "foo" } }        ]        }) {        id        name        customFields {            infoUrl            downloadable            shortName        }    }}

Graphql

query {    products(options: {    filter: {        infoUrl: { contains: "new" },        downloadable: { eq: true }        },        sort: {            infoUrl: ASC        }        }) {        items {            id            name            customFields {                infoUrl                downloadable                shortName            }        }    }}

Type	Description	Example
`string`	Short string data	url, label
`localeString`	Localized short strings	localized url
`text`	Long text data	extended product info, json config object
`localeText`	Localized long text	localized extended product info
`int`	Integer	product weight, customer loyalty points, monetary values
`float`	Floating point number	product review rating
`boolean`	Boolean	isDownloadable flag on product
`datetime`	A datetime	date that variant is back in stock
`struct`	Structured json-like data	Key-value attributes with additional data for products
`relation`	A relation to another entity	Asset used as a customer avatar, related Products

const config = {    // ...    customFields: {        Customer: [            {                name: 'avatar',                type: 'relation', // [!code highlight]                entity: Asset, // [!code highlight]            },        ],    },};

Graphql

mutation {    updateCustomer(input: {        id: 1        customFields: {            avatarId: 42,        }    }) {        id        customFields {            avatar {                id                name                preview            }        }    }}

src/vendure-config.ts

import { VendureConfig } from '@vendure/core';const config: VendureConfig = {    // ...    customFields: {        Customer: [            { name: 'externalId', type: 'string' },            { name: 'avatar', type: 'relation', entity: Asset },        ],    },};

const customer = await this.connection.getRepository(ctx, Customer).findOne({    where: { id: 1 },    relations: {        customFields: {            avatar: true,        }    }});console.log(customer.avatar);

const customer = await this.connection.getRepository(ctx, Customer).createQueryBuilder('customer')    .leftJoinAndSelect('customer.customFields.avatar', 'avatar')    .where('customer.id = :id', { id: 1 })    .getOne();console.log(customer.avatar);

const customer = await this.connection.getRepository(ctx, Customer).findOne({    where: { id: 1 },});// No join needed to access the id of the related Assetconsole.log(customer.customFields.avatarId);

Graphql

query {    activeCustomer {        customFields {            avatar {                id                preview            }            # or, when only the id is needed:            avatarId        }    }}

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'infoUrl', // [!code highlight]                type: 'string'            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'infoUrls',                type: 'string',                list: true, // [!code highlight]            },        ]    }};

src/vendure-config.ts

import { LanguageCode } from '@vendure/core';const config = {    // ...    customFields: {        Product: [            {                name: 'infoUrl',                type: 'string',                label: [ // [!code highlight]                    { languageCode: LanguageCode.en, value: 'Info URL' }, // [!code highlight]                    { languageCode: LanguageCode.de, value: 'Info-URL' }, // [!code highlight]                    { languageCode: LanguageCode.es, value: 'URL de información' }, // [!code highlight]                ], // [!code highlight]            },        ]    }};

src/vendure-config.ts

import { LanguageCode } from '@vendure/core';const config = {    // ...    customFields: {        Product: [            {                name: 'infoUrl',                type: 'string',                description: [ // [!code highlight]                    { languageCode: LanguageCode.en, value: 'A URL to more information about the product' }, // [!code highlight]                    { languageCode: LanguageCode.de, value: 'Eine URL zu weiteren Informationen über das Produkt' }, // [!code highlight]                    { languageCode: LanguageCode.es, value: 'Una URL con más información sobre el producto' }, // [!code highlight]                ], // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'profitMargin',                type: 'int',                public: false, // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'profitMargin',                type: 'int',                readonly: true, // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        OrderLine: [            {                name: 'referralId',                type: 'string',                internal: true, // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'reviewRating',                type: 'float',                defaultValue: 0, // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'reviewRating',                type: 'float',                nullable: false, // [!code highlight]                defaultValue: 0, // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        Customer: [            {                name: 'externalId',                type: 'string',                unique: true, // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'externalReference',                type: 'string',                index: true, // [!code highlight]            },        ]    }};

src/vendure-config.ts

import { LanguageCode } from '@vendure/core';const config = {    // ...    customFields: {        Product: [            {                name: 'infoUrl',                type: 'string',                validate: (value: any) => { // [!code highlight]                    if (!value.startsWith('http')) { // [!code highlight]                        // If a localized error message is not required, a simple string can be returned. // [!code highlight]                        // return 'The URL must start with "http"'; // [!code highlight] // [!code highlight]                        // If a localized error message is required, return an array of LocalizedString objects. // [!code highlight]                        return [ // [!code highlight]                            { languageCode: LanguageCode.en, value: 'The URL must start with "http"' }, // [!code highlight]                            { languageCode: LanguageCode.de, value: 'Die URL muss mit "http" beginnen' }, // [!code highlight]                            { languageCode: LanguageCode.es, value: 'La URL debe comenzar con "http"' }, // [!code highlight]                        ]; // [!code highlight]                    } // [!code highlight]                }, // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'partCode',                type: 'string',                validate: async (value, injector, ctx) => { // [!code highlight]                    const partCodeService = injector.get(PartCodeService); // [!code highlight]                    const isValid = await partCodeService.validateCode(value); // [!code highlight]                    if (!isValid) { // [!code highlight]                        return `Part code ${value} is not valid`; // [!code highlight]                    } // [!code highlight]                }, // [!code highlight]            },        ]    }};

src/vendure-config.ts

import { Permission } from '@vendure/core';const config = {    // ...    customFields: {        Product: [            {                name: 'internalNotes',                type: 'text',                requiresPermission: Permission.SuperAdmin, // [!code highlight]            },            {                name: 'shippingType',                type: 'string',                // You can also use an array of permissions,  // [!code highlight]                // and the user must have at least one of the permissions // [!code highlight]                // to access the field. // [!code highlight]                requiresPermission: [ // [!code highlight]                    Permission.SuperAdmin, // [!code highlight]                    Permission.ReadShippingMethod, // [!code highlight]                ], // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'oldField',                type: 'string',                deprecated: true, // [!code highlight]            },            {                name: 'legacyUrl',                type: 'string',                deprecated: 'Use the new infoUrl field instead', // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'gtin',                type: 'string',                pattern: '^\d{8}(?:\d{4,6})?$', // [!code highlight]            },        ]    }};

src/vendure-config.ts

import { LanguageCode } from '@vendure/core';const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'condition',                type: 'string',                options: [ // [!code highlight]                    { value: 'new', label: [{ languageCode: LanguageCode.en, value: 'New' }] }, // [!code highlight]                    { value: 'used', label: [{ languageCode: LanguageCode.en, value: 'Used' }] }, // [!code highlight]                ], // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'partCode',                type: 'string',                length: 20, // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'reviewRating',                type: 'int',                min: 0, // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'reviewRating',                type: 'int',                max: 5, // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'reviewRating',                type: 'int',                step: 0.5, // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'releaseDate',                type: 'datetime',                min: '2019-01-01T00:00:00.000Z', // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'releaseDate',                type: 'datetime',                max: '2019-12-31T23:59:59.999Z', // [!code highlight]            },        ]    }};

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            {                name: 'dimensions',                type: 'struct',                fields: [ // [!code highlight]                    { name: 'length', type: 'int' }, // [!code highlight]                    { name: 'width', type: 'int' }, // [!code highlight]                    { name: 'height', type: 'int' }, // [!code highlight]                ], // [!code highlight]            },        ]    }};

src/vendure-config.ts

import { LanguageCode } from '@vendure/core';const config = {    // ...    customFields: {        OrderLine: [            {                name: 'customizationOptions',                type: 'struct',                fields: [                    {                        name: 'color',                        type: 'string',                        options: [ // [!code highlight]                            { value: 'red', label: [{ languageCode: LanguageCode.en, value: 'Red' }] }, // [!code highlight]                            { value: 'blue', label: [{ languageCode: LanguageCode.en, value: 'Blue' }] }, // [!code highlight]                        ], // [!code highlight]                    },                    {                        name: 'engraving',                        type: 'string',                        validate: (value: any) => { // [!code highlight]                            if (value.length > 20) { // [!code highlight]                                return 'Engraving text must be 20 characters or fewer'; // [!code highlight]                            } // [!code highlight]                        }, // [!code highlight]                    },                    {                        name: 'notifyEmailAddresses',                        type: 'string',                        list: true, // [!code highlight]                    }                ],            },        ]    }};

src/vendure-config.ts

import { Product } from '\@vendure/core';const config = {    // ...    customFields: {        Product: [            {                name: 'relatedProducts',                list: true,                type: 'relation', // [!code highlight]                entity: Product, // [!code highlight]            },        ]    }};

src/vendure-config.ts

import { Product } from '\@vendure/core';const config = {    // ...    customFields: {        Product: [            {                name: 'relatedProducts',                list: true,                type: 'relation',                entity: Product,                eager: true, // [!code highlight]            },        ]    }};

src/vendure-config.ts

import { CmsArticle } from './entities/cms-article.entity';const config = {    // ...    customFields: {        Product: [            {                name: 'blogPosts',                list: true,                type: 'relation',                entity: CmsArticle,                graphQLType: 'BlogPost', // [!code highlight]            },        ]    }};

src/vendure-config.ts

import { Product } from '\@vendure/core';import { ProductReview } from './entities/product-review.entity';const config = {    // ...    customFields: {        Product: [            {                name: 'reviews',                list: true,                type: 'relation',                entity: ProductReview,                inverseSide: (review: ProductReview) => review.product, // [!code highlight]            },        ]    }};

src/vendure-config.ts

import { Product } from '\@vendure/core';import { ProductReview } from './entities/product-review.entity';const config = {    // ...    customFields: {        Product: [            {                name: 'reviews',                list: true,                type: 'relation',                entity: ProductReview,                cascade: ['insert', 'update'], // [!code highlight]            },        ]    }};

src/vendure-config.ts

import { Product } from '\@vendure/core';import { ProductReview } from './entities/product-review.entity';const config = {    // ...    customFields: {        Product: [            {                name: 'reviews',                list: false,                type: 'relation',                entity: ProductReview,                onDelete: 'SET NULL', // [!code highlight]            },        ]    }};

src/vendure-config.ts

import { Product } from '\@vendure/core';import { ProductReview } from './entities/product-review.entity';const config = {    // ...    customFields: {        Product: [            {                name: 'reviews',                list: false,                type: 'relation',                entity: ProductReview,                onUpdate: 'CASCADE', // [!code highlight]            },        ]    }};

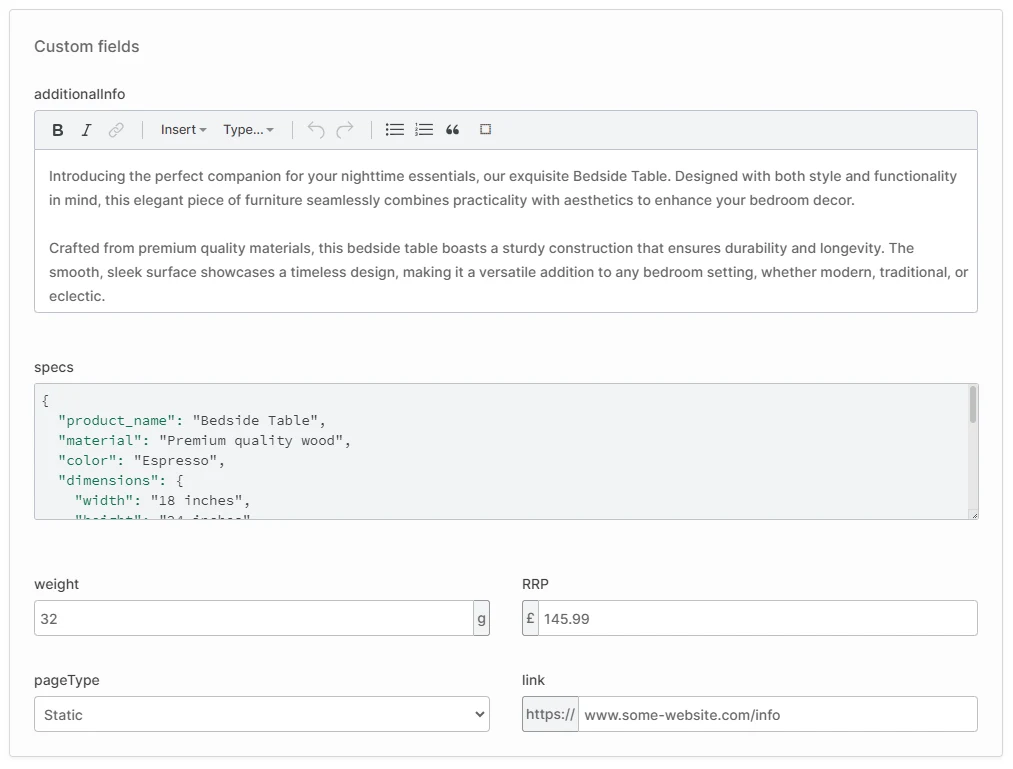

Type	Form input component
`string`, `localeString`	`text-form-input` or, if options are defined, `select-form-input`
`text`, `localeText`	`textarea-form-input`
`int`, `float`	`number-form-input`
`boolean`	`boolean-form-input`
`datetime`	`date-form-input`
`relation`	Depends on related entity, defaults to `relation-form-input` if no specific component exists

src/vendure-config.ts

const config = {    // ...    customFields: {        ProductVariant: [            {                name: 'rrp',                type: 'int',                ui: { component: 'currency-form-input' }, // [!code highlight]            },        ]    }}

import { LanguageCode, VendureConfig } from '@vendure/core';const config: VendureConfig = {    // ...    customFields: {        Product: [            // Rich text editor            { name: 'additionalInfo', type: 'text', ui: { component: 'rich-text-form-input' } },            // JSON editor            { name: 'specs', type: 'text', ui: { component: 'json-editor-form-input' } },            // Numeric with suffix            {                name: 'weight',                type: 'int',                ui: { component: 'number-form-input', suffix: 'g' },            },            // Currency input            {                name: 'RRP',                type: 'int',                ui: { component: 'currency-form-input' },            },            // Select with options            {                name: 'pageType',                type: 'string',                ui: {                    component: 'select-form-input',                    options: [                        { value: 'static', label: [{ languageCode: LanguageCode.en, value: 'Static' }] },                        { value: 'dynamic', label: [{ languageCode: LanguageCode.en, value: 'Dynamic' }] },                    ],                },            },            // Text with prefix            {                name: 'link',                type: 'string',                ui: {                    component: 'text-form-input',                    prefix: 'https://',                },            },        ],    },};

src/vendure-config.ts

const config = {    // ...    customFields: {        Product: [            { name: 'additionalInfo', type: 'text', ui: { component: 'rich-text-form-input' } },            { name: 'specs', type: 'text', ui: { component: 'json-editor-form-input' } },            { name: 'width', type: 'int', ui: { tab: 'Shipping' } },            { name: 'height', type: 'int', ui: { tab: 'Shipping' } },            { name: 'depth', type: 'int', ui: { tab: 'Shipping' } },            { name: 'weight', type: 'int', ui: { tab: 'Shipping' } },        ],    },}

import { RequestContext, TransactionalConnection, ID, Product } from '@vendure/core';export class MyService {    constructor(private connection: TransactionalConnection) {    }    async getInfoUrl(ctx: RequestContext, productId: ID) {        const product = await this.connection            .getRepository(ctx, Product)            .findOne(productId);        return product.customFields.infoUrl;    }                           // ^ TS2339: Property 'infoUrl'}                             // does not exist on type 'CustomProductFields'.

// types.ts// Note: we are using a deep import here, rather than importing from `@vendure/core` due to// a possible bug in TypeScript (https://github.com/microsoft/TypeScript/issues/46617) which// causes issues when multiple plugins extend the same custom fields interface.import { CustomProductFields } from '@vendure/core/dist/entity/custom-entity-fields';declare module '@vendure/core/dist/entity/custom-entity-fields' {    interface CustomProductFields {        infoUrl: string;        downloadable: boolean;        shortName: string;    }}
