Page Blocks

In the Dashboard, all pages are built from blocks. Every block has a pageId and a blockId which uniquely locates it in the app (see Dev Mode section).

You can also define your own blocks, which can be added to any page and can even replace the default blocks.

Info

All available options are documented in the DashboardPageBlockDefinition reference

Basic Page Block Example

Here's an example of how to define a custom page block:

src/plugins/my-plugin/dashboard/index.tsx

import { defineDashboardExtension } from '@vendure/dashboard';defineDashboardExtension({    pageBlocks: [        {            id: 'related-articles',            title: 'Related Articles',            location: {                // This is the pageId of the page where this block will be                pageId: 'product-detail',                // can be "main", "side" or "full"                column: 'side',                position: {                    // Blocks are positioned relative to existing blocks on                    // the page.                    blockId: 'facet-values',                    // Can be "before", "after" or "replace"                    // Here we'll place it after the `facet-values` block.                    order: 'after',                },            },            component: ({ context }) => {                // In the component, you can use the `context` prop to                // access the entity and the form instance.                return <div className="text-sm">Articles related to {context.entity.name}</div>;            },        },    ],});

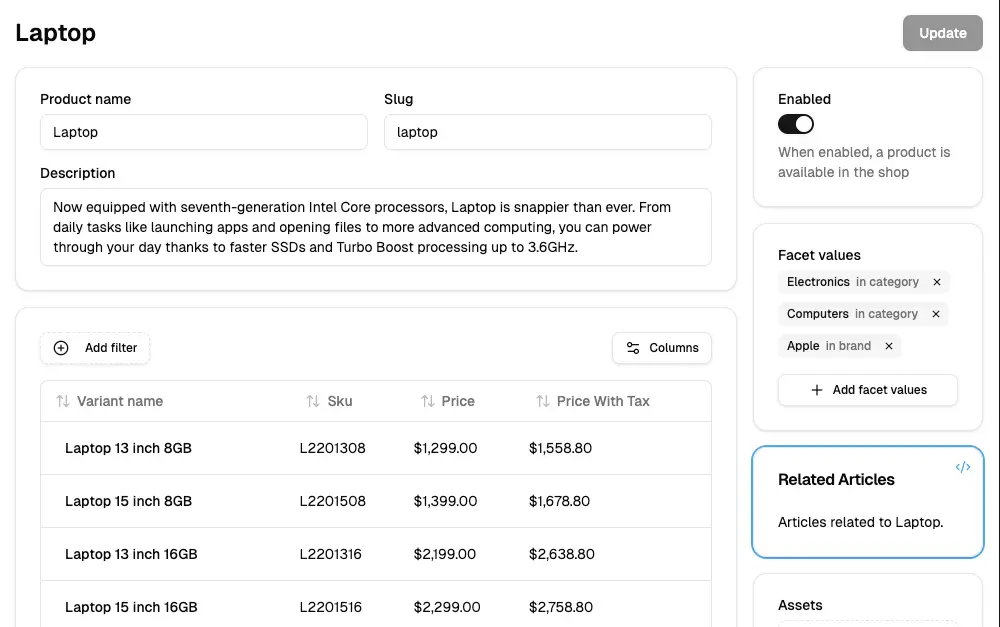

This will add a "Related Articles" block to the product detail page:

Block Positioning

Page blocks can be positioned in three ways relative to existing blocks:

Before

Places the block before the specified blockId:

Tsx

position: {    blockId: 'product-variants',    order: 'before'}

After

Places the block after the specified blockId:

Tsx

position: {    blockId: 'product-variants',    order: 'after'}

Replace

Replaces the existing block entirely:

Tsx

position: {    blockId: 'product-variants',    order: 'replace'}

Block Columns

Blocks can be placed in three columns:

main: The main content area (wider column on the left)
side: The sidebar area (narrower column on the right)
full: Takes up the full horizontal width. This is mostly useful for adding blocks to list pages

Context Data

The context prop provides access to:

entity: The current entity being viewed/edited (e.g., Product, Customer, etc.)
form: The React Hook Form instance for the current page (if applicable)
route: Route information and parameters

Block Visibility

The visibility of a block can be dynamically controlled using the shouldRender function. This function receives the same context object as the block component, and should return a boolean to determine whether the block should be rendered.

import { defineDashboardExtension } from '@vendure/dashboard';import { AdvancedTaxInfo } from './advanced-tax-info.tsx';defineDashboardExtension({    pageBlocks: [        {            id: 'advanced-tax-info',            location: {                pageId: 'product-variant-detail',                column: 'side',                position: {                    blockId: 'facet-values',                    order: 'after',                },            },            component: AdvancedTaxInfo,            shouldRender: context => {                // You can use custom and build-in hooks                // in this function                const { activeChannel } = useChannel();                const hasTaxSettings = context.entity?.customFields?.taxSettings                // This block will only render if the entity has the                // expected custom field data, and the active channel has                // the given tax setting                return hasTaxSettings && activeChannel.pricesIncludeTax === false;            },        },    ],});

Tip

The shouldRender function can be used to hide built-in blocks by combining it with the "replace" position on an existing blockId.

Advanced Example

Here's a more complex example that shows different types of blocks:

src/plugins/my-plugin/dashboard/index.tsx

import { defineDashboardExtension, Button } from '@vendure/dashboard';import { useState } from 'react';defineDashboardExtension({    pageBlocks: [        // Analytics block for product page        {            id: 'product-analytics',            title: 'Product Analytics',            location: {                pageId: 'product-detail',                column: 'side',                position: {                    blockId: 'product-assets',                    order: 'after',                },            },            component: ({ context }) => {                const product = context.entity;                return (                    <div className="space-y-2">                        <div className="text-sm text-muted-foreground">Last 30 days</div>                        <div className="grid grid-cols-2 gap-4">                            <div>                                <div className="text-2xl font-bold">142</div>                                <div className="text-xs text-muted-foreground">Views</div>                            </div>                            <div>                                <div className="text-2xl font-bold">23</div>                                <div className="text-xs text-muted-foreground">Orders</div>                            </div>                        </div>                    </div>                );            },        },        // Quick actions block        {            id: 'quick-actions',            title: 'Quick Actions',            location: {                pageId: 'product-detail',                column: 'main',                position: {                    blockId: 'product-variants',                    order: 'after',                },            },            component: ({ context }) => {                const [isProcessing, setIsProcessing] = useState(false);                const handleSync = async () => {                    setIsProcessing(true);                    // Simulate API call                    await new Promise(resolve => setTimeout(resolve, 2000));                    setIsProcessing(false);                };                return (                    <div className="flex gap-2">                        <Button variant="outline" onClick={handleSync} disabled={isProcessing}>                            {isProcessing ? 'Syncing...' : 'Sync to External System'}                        </Button>                        <Button variant="outline">Generate QR Code</Button>                    </div>                );            },        },    ],});

Finding Block IDs

To find the pageId and blockId values for positioning your blocks:

Enable Dev Mode in the dashboard
Navigate to the page where you want to add your block
Hover over existing blocks to see their IDs
Use these IDs in your block positioning configuration

Best Practices

Use descriptive IDs: Choose clear, unique IDs for your blocks
Position thoughtfully: Consider the user experience when placing blocks
Handle loading states: Show appropriate loading indicators for async operations
Follow design patterns: Use the dashboard's existing UI components for consistency
Test thoroughly: Verify your blocks work correctly on different screen sizes
